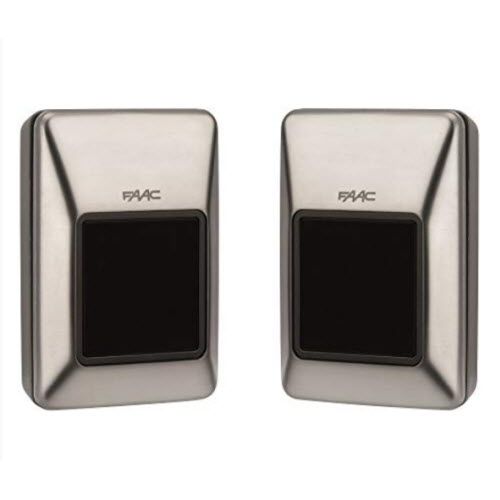

FAAC USA 7851051 XP 30 Stainless Steel Photo Eyes
In stock
SKU
faac:7851051
$231.00
Features:
- Vandal Resistant AISI 304L Stainless Steel Cover
- UL 325 Compliant When Used With FAAC Control Boards
- Plastic Body With Moulded Front Seal Cover And Closed-Cell Cable Routing Area Seal
- Protects Against Interference From External Light Sources
- 4 Channel Relay Selection, Allowing Installation Of Up To 4 Separate Photocell Pairs
- Wall-Mounted Installation or Flush/Column-Mounted Installation With Adapter
Features:
- Vandal Resistant AISI 304L Stainless Steel Cover
- UL 325 Compliant When Used With FAAC Control Boards
- Plastic Body With Moulded Front Seal Cover And Closed-Cell Cable Routing Area Seal
- Protects Against Interference From External Light Sources
- 4 Channel Relay Selection, Allowing Installation Of Up To 4 Separate Photocell Pairs
- Wall-Mounted Installation or Flush/Column-Mounted Installation With Adapter
Specifications:
- Maximum Distance: 100 ft. (30 m)
- Power Supply Voltage: 24 AC or DC
- Absorbed Current: RX (30 mA), TX (20 mA)
- Contact Ratings: 60 VA / 24 W
- Alignment: Automatic
- Auto-Alignment Angle: 7º - 13.5º
- Output Type: Relay - N.C./N.O.
- Protection Class: IP54
- Operating Temperatures: -4 Degrees ~ 131 Degrees
- Dimensions (LxHxD): 2.16" x 3" x 0.82"
