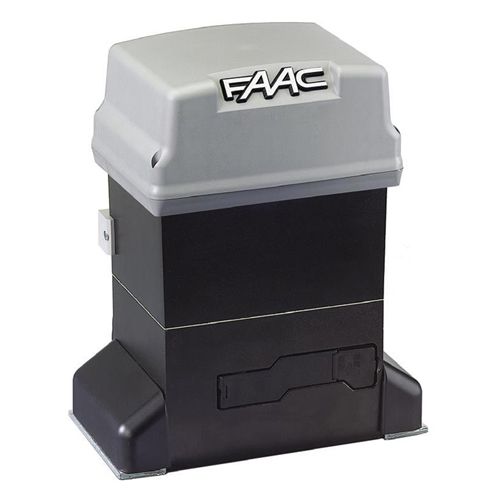

FAAC USA 746 ER Z20 Rack and Pinion Slide Gate Operator
In stock
SKU
faac:109746.1
$1,235.00
(2) MONITORED SAFETY DEVICES REQUIRED
- Quick and easy installation thanks to the built-in, prewired control unit
- Maximum anti-crushing safety with a twin-disk oil-bath clutch and electronic board with encoder for reverse on obstacle
- Non-reversing operator, no electric locks needed
- Key-protected manual release device
- Magnetic Limit Switch
- Adjustable mounting bracket for flexible positioning
- Simplified programming via display and pushbuttons
INCLUDES:
- Operator with Z20 Pinion and 780D Control Board
- Limit Switch Magnets
- Manual Release Key
***Rack is not included***
- Quick and easy installation thanks to the built-in, prewired control unit
- Maximum anti-crushing safety with a twin-disk oil-bath clutch and electronic board with encoder for reverse on obstacle
- Non-reversing operator, no electric locks needed
- Key-protected manual release device
- Magnetic Limit Switch
- Adjustable mounting bracket for flexible positioning
- Simplified programming via display and pushbuttons
TECHNICAL SPECIFICATIONS
- Input voltage: 230 Vac (+6% -10%)
- Power: 300 W
- Current: 1.5 A
- Electric motor: 0.3 KW (0.4 hp)
- Capacitor 12.5 uF
- Traction and thrust force: 112 lbf (500 N)
- Motor rotation speed: 1700 r.p.m.
- Reduction ratio: 1:30
- Gate max weight: 900 lb (408 Kg)
- Gate speed: 0.78 ft/second (0.24 m/second)
- Gate max length: 164 ft (50 m)
- Use frequency: 70%
- Thermal protection on motor winding: 120 °C
- Clutch: Twin-disk in oil-bath
- Operating ambient temperature: -4°F - 131°F (-20°C - +55°C)
- Operator weight: 31 lb (14 Kg)
- Dimensions (L x D x H): 10.8 x 7.5 x 13.2 in (275x191x336 mm)
- Protection class: IP 44
| Insurance Price Type | Fixed |
|---|---|
| Motor Size | 1/2 Hp |
| Max Gate Weight | 900 |
| Max Gate Width | 164 |
