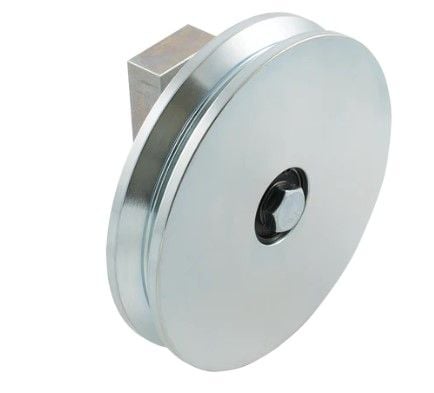

D&D CI2260 Shut It 6" Hardcore Cantilever Wheel Assembly
In stock
SKU
dad:ci2260
$93.25
The 6" HardCORE Cantilever Wheel Assembly by D&D Technologies Inc. SHUT IT features an all-steel design with zinc plated finish. It allows a wheel to be installed on a rail rather than on a v-track on the ground surface.
Installed on a rail rather than on a v-track
• Ideal when installing a track on the ground is not feasible
• Adjustable plates for perfect installations
• Only 1 1/8" (29mm) wide to reduce friction and debris
• Super-hard cold rolled steel (30RC rating)
• Load rating per gate: 3,000 lb (1,360kg)
• Maximum gate weight: 1,500 lb (680kg)
The 6" HardCORE Cantilever Wheel Assembly by D&D Technologies SHUT IT Gate Hardware features an all-steel design with zinc plated finish. It allows a wheel to be installed on a rail rather than on a v-track on the ground surface. This is ideal for installations where a round track is not possible. Whether it is on a full, semi, or quarter cantilever system, the 6" HardCORE Cantilever Wheel Assembly is the ideal solution for the job.
Features:
- Wheel Material: Steel, Zinc Plated Finish
- Carriage Plate Material: Steel, Zinc Plated Finish
- Two Maintenance Free Sealed Bearings (no greasing)
- Adjustable Plates For Perfect Installations
- Only 1 1/8" Thick to Reduce Friction and Debris Issues
- Maximum Gate Weight: 1500 lbs
- Maximum Gate Load: 3000 lbs
- Minimum 1045 Cold Rolled Steel (30RC Rating)
- Fixing Method: Weld-On
- Limited Lifetime Warranty (5 Years on Bearings)
