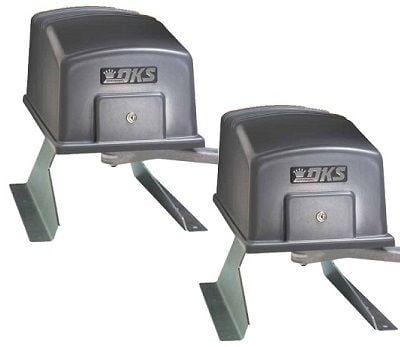

DKS DoorKing 6100 1/2 Hp Dual PAD Mount Package
In stock
SKU
dks:6100380,6100381,2600671(2)
$3,810.00
Continuous Duty, 1/2HP 115VAC 5.4amp
Max Gate Weight 500 lbs, Max Gate Length 14'
Includes:
(1) Master Operator
(1) Slave Operator with 40' of Gate Connection Cable
(2) PAD Mount Kits
Maximum gate width 14-feet
Maximum gate weight 500 pounds (Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
Swings gate 90 degrees in approximately 10-seconds
1/2 HP continuous-duty motor, 115 VAC, 5.4 Amps
Class I and Class II applications
Compliant with UL 325 and 991. ETL listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional secondary entrapment prevention devices may need to be installed with this gate operator.
Dimensions (operator only): 13.25"W x 12"H* x 23"D (28"D with convenience open option) (* Height of operator only. Actual height above ground is determined by which mounting method is used)
Warranty: 5 years.
| Motor Size | 1/2 Hp |
|---|---|
| Max Gate Weight | 500 lbs. |
| Max Gate Width | 14 ft. |
