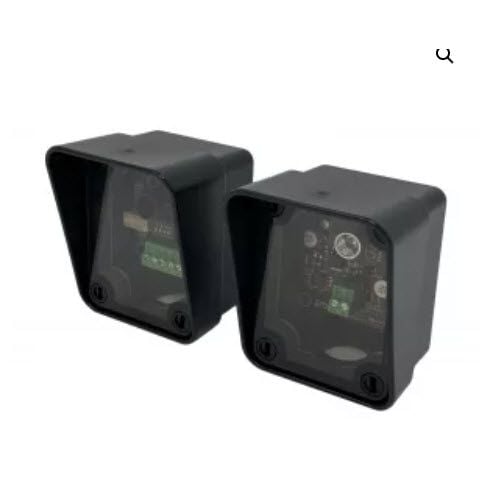

EMX IRB-MON2 Thru Beam Photoeye Kit
In stock
SKU
emx:irbmon2
$162.70
| Power | 6-35 VDC, 12-24 VAC |
| Current (NC and 10K Monitoring Methods) | 35 mA DC (when aligned and relay activated) |
| Current (Pulse Monitoring Methods) | 15 mA |
| Connections | “Removable” screw terminal for easy wiring |
| Supported Monitoring Methods | 10K, 2-wire pulse, Normally Closed (power cycle) |
| Relay Output Configuration | Form C contacts (NO, COM, NC) |
| Response Time | <300 mS (for use in NC or 10K monitoring) |
| Operating Temperature | -40° to 170°F (-40° to 77°C) |
| Dimensions (L x W x H) | 3.6” (91 mm) x 2.9” (74 mm) x 2.9” (74 mm) |
| Conduit Hole Size (bottom of the housing) | 0.83" (21.3 mm) – large enough for 1⁄2 in. NPT |
UNIVERSAL UL325 THRU BEAM PHOTOEYE IRB-MON2 Building on the success of the original IRB-MON, the IRB-MON2 takes a step further by offering advanced features in a smaller and more convenient package.
- UL325 Monitoring Methods The IRB-MON2 easily integrates with various systems for increased adaptability
- Normally Closed 10K
- Normally Open
- Two-Wire Pulse, 2 Frequency
- Two-Wire Pulse, 3 Frequency
- 1/2 in. NPT Conduit Hole
- 115 ft. Operating Range
- Integrated Sensor Hood The integrated sensor hood shields the device from the elements, ensuring reliable performance in all conditions
- Removable Terminal Block The IRB-MON2 boasts a removable terminal block for easy wiring
