MAX MEGATRON TANK Swing Gate Operator
MAX MEGATRON TANK Swing Gate Operator MAX MEGATRON TANK Swing Gate Operator
  1. Previous MAX MX024-1 Long Swing Arm Assembly
  2. Back to: Swing
  3. Next All-O-Matic MACH-PRIME Dual Swing Column Mount Gate Operator Package

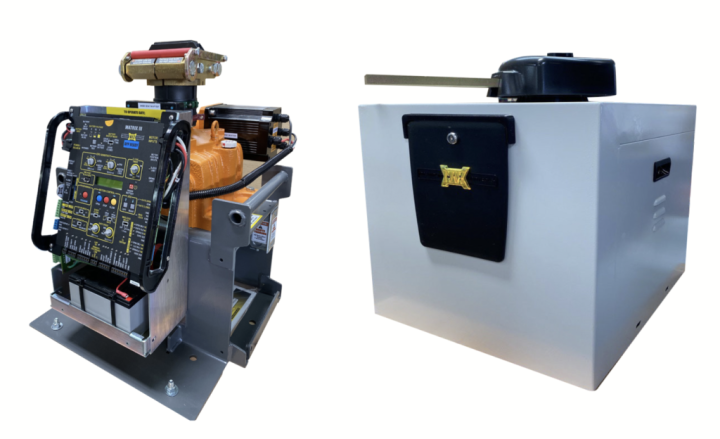

MAX MEGATRON TANK Swing Gate Operator

Trustpilot
In stock
SKU
max:megatrontank
$5,668.88

Max Megatron Tank Super Heavy-Duty Brushless 24V DC Swing Gate Operator, High-traffic commercial applications, 4500lbs, capacity, is the maximum level of gate control. Brushless Motor Continuous Duty Cycle 2-year warranty on gate operator Battery 1-year warranty UL 325/991compliant. Class Of Operation lll and lV. Battery Backup adjustable from 11.5 to 19 seconds 90º Power options Input 115V/230V AC.


Wishlist Compare

Share it:

Max Megatron Tank Super Heavy-Duty Brushless 24V DC Swing Gate Operator, High-traffic commercial applications, 4500lbs, capacity, is the maximum level of gate control. Brushless Motor Continuous Duty Cycle 2-year warranty on gate operator Battery 1-year warranty UL 325/991compliant. Class Of Operation lll and lV. Battery Backup adjustable from 11.5 to 19 seconds 90º Power options Input 115V/230V AC 2-year warranty.

Megatron Tank Mechanical Specifications

Specifications listed in BLUE are unique to Megatron Tank

  • Max Megatron Tank dimensions (19.25 W x 23 D x 25 H) 22.5 arm height
  • Heavy duty dual gear box 900:1 Size 100 for Megatron Tank – 120 lbs.
  • Megatron Tank capacity 4500lbs /10ft or 3000lbs/30ft
  • Large output shaft: 31⁄4” diameter solid steel with cast iron clamping system for all Megatron
  • Direct gear drive (no chains, belts, or pulleys)
  • Mechanical and electrical manual gate release functions
  • Corrosion protection gold zinc coating and powder coating
  • Continuous cycle at extreme temperature range; no overheating possibilities
  • Intelligent ramp-up and ramp-down gate speed control for smooth operation
  • Shipping weight of Max Megatron Tank (323 lb)

    Specifications listed in BLUE are unique to Megatron Tank

    • High-traffic intuitive loop management system for better security
    • Advanced security features with built-in audible and remote alarms
    • Magnetic lock control relay outputs with selectable delay times
    • Tamper alert relay output triggers “on” if gate is forced open
    • Audible alarm if gate is tampered with or ERD is triggered for higher security
    • Lockable cover with key lock release to prevent intruders and vandalism
    • Gate disable feature, disables all inputs with exception of the fire department input for high security
    • Built-in transaction buffer for higher security
    • Gate status outputs for gate monitoring
    • Direct motor control of jog OPEN/CLOSE for manually moving a gate in case of emergency
    • Advanced anti-tailgate features to provide higher security
    • No need for magnetic lock with the robust output shaft and clamp design of the Megatron Tank

      Section I Coverage

      1. 2 years on all components
      2. 1 year on batteries

      Section II Not Covered

      1. Damages due to flooding
      2. Damages due to fire
      3. Damages due to negligence i.e. leaving the cover off in the rain, improper wiring of AC or peripheral systems
      4. Damages due to product misuse i.e. gate and operator combination mismatch
      5. Damages due to vandalism

      Section III RMA Shipping Policy

      1. Maximum Controls LLC will pay for return shipping via standard ground UPS or USPS FOB CA on all RMA’s within one year of Distributor’s purchase
      2. Any form of “Expedited Shipping” on any RMA will be paid by Distributor

      Section IV Product Returns

      1. Products must be in original, resalable condition with all warranty information, manuals, and original packaging.
      2. A re-stock fee of 10% will be charged on all returned products.
      3. All returned products must reference a Maximum Controls PRA number or it will be refused.
      4. Maximum Controls is not responsible for freight charges associated with returned merchandise.
