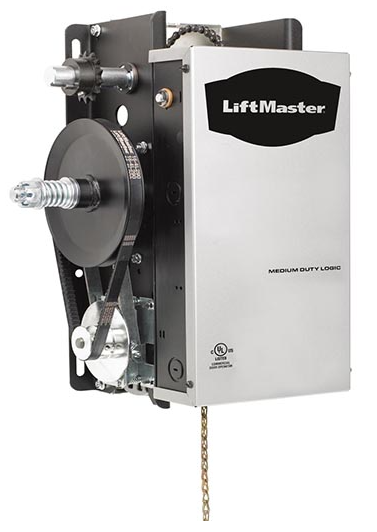

LiftMaster MJ5011U Medium-Duty Jackshaft Door Operator

Availability:In stock

SKU

liftmaster:mj5011u

$726.20

Max Height 14 ft

Max Width 22 ft

320 sq ft total

Max Door Weight is 950 lbs.

Includes a 3-button control station and CPS-U photo eyes.

Maximum recommended duty cycle: 12 cycles per hour total/50 cycles per day total

Type of Door and Shaft Size for Sprocket Determination

Rolling, 1" Shaft + $54.00

Rolling, 1-1/4" Shaft + $37.00

Sectional, 1" Shaft + $35.00

Sectional, 1-1/4" Shaft + $37.00

No sprocket needed.

Door Height:

Up to 14 feet

Quantity:

Wishlist Compare

‌

Performance

Apply Open/Close/Stop functions with the standard three-push-button control station. Controls with one, two and three buttons are available.

Receive notifications when routine maintenance is required on your Commercial Door Operator.

Mount on the left or right side of the door. No rails to hang, the operator simply mounts on the wall and attaches to the door shaft through chain and sprocket. (3900 can mount directly to shaft)

Enable limit setting for ease of installation and adjustment to ensure accuracy even after a power failure.

Automatically close the door with Timer-To-Close (programmable in 1-second or 15-second increments)

Safety and Security

Accept up to 20 remote controls and unlimited DIP switch remote control with our Security+ radio technology.

Protect against door and operator damage due to obstacles with the Adjustable Friction Clutch.

Signal the door to reverse or stop if closing time exceeds maximum door travel prevent damage to door and operator.

More Information
Insurance Price Type	Fixed
Motor Size	1/2 Hp
