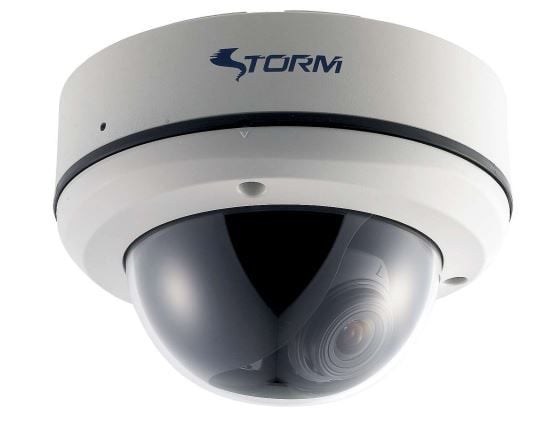

DT-622FV Storm 650TVL Dome Camera, Auto-Iris VF Lens

Overview

AUTO IR CUT FILTER REMOVAL : ICR

At daytime, IR light is filtered away in the camera by the IR-cut filter in order to render color images that humans are used to. When light conditions are too dark to render color images, the IR-cut filter is automatically removed to enable the camera to make use of the IR light to produce a high quality black & white video.

OSD CAMERA SETUP

It has a small program built-in to the camera to help users to setup the camera function without difficulties. No more reading a manual and tipping dip-switches to configure the camera.

VANDAL-RESISTANT CASE

The poly-carbonated impact resistant dome can sithstand repeated blows from a 10-pound hammer and not break. They are perfect for prisons, banks, military installations and other high risk areas.

3-AXIS DOME CONSTRUCTION

Accompanying with 3-Axis construction, the Dome camera can be rotated, shifted horizontally or vertically so you can position the camera to get the pictures you need

FEATURES

• STORM® series camera : IP-68 Water & Vandal-proof
• Easy Twist and Lock Installation : No drilling thru camera required (Drill hole guide included)
• 3-Axis Construction : By adjusting ‘3-Axis’ control, you get a straight view regardless whether camera is installed on a wall or ceiling
• TRUE Day & Night : ICR (IR-Cut Filter Removal)
  > Daytime Advantage : ‘IR-Cut Filter’ blocks infrared light causing color distortion.
  > Night-time Advantage : By removing the ‘IR-Cut Filter’ at night, camera can take advantage of infrared light to enhance image brightness.
• 1/3" Sony Double Scan color CCD sensor with HERO Chipset
• High Resolution – 650 (H) TV Line in Color
• Minimum Illumination – 0.3Lux (Color) / 0.0001 Lux (Sens-up × 256)
• Double Scan Wide Dynamic Range (DS-WDR) : shows more detail level in dark area at full realtime (30fps) speed
• 2.8 ~ 12mm Auto-Iris Zoom Lens Installed
• SENS-UP : intensified low light
  > Instead of changing camera mode to B&W for enhancing image brightness, it stays in color mode and increases its shutter speed to gather more light to bright up the image.
• HLM – High Light Mask Function
• DIS – Digital Image Stabilizer
• LSC – Lens Shading Compensation
• OSD (On Screen Display) – Easy camera setup
• 3DDNR (3D Digital Noise Reduction) – Clear motion noise
• DC 12V only
