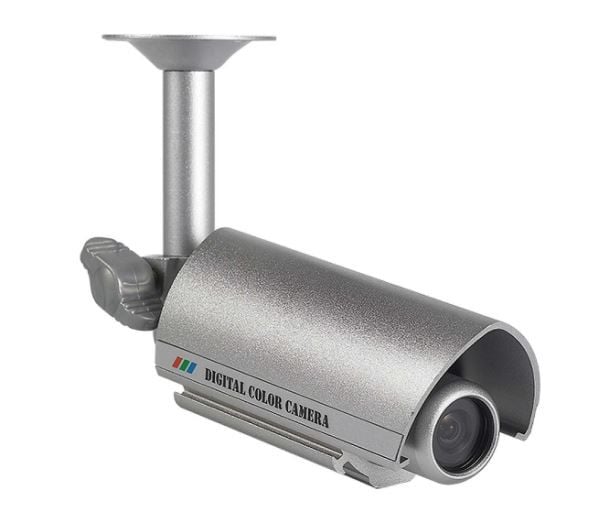

BU-6001 620TVL Bullet Camera, Fixed Lens
In stock
SKU
cctv:bu6001
$20.00
1/3" Sony Super HAD II CCD • 4.3mm Fixed Lens • Day & Night • Sun-Visor • Weather-Resistant
FEATURES
- 1/3" Sony Super HAD CCD II
- Lens 4.3mm Fixed Lens
- High Resolution (620TVL) / High Sensitivity
- 0.1Lux at F1.2(Color) / 0.01Lux(B/W)
- Easy Installation
- Day & Night Function
| Resolution | 620 TV Line |
| Sensor | 1/3 inch SONY Super HAD II CCD |
| Total Pixels | 811(H) × 508(V) 410K pixels |
| Effective Pixels | 768(H) × 494(V) 380K pixels |
| Scanning System | 2:1 Interlace |
| S/N (Y signal) | More than 50dB (AGC off) |
| Frequency | Horizontal : 15.734KHz / Vertical : 59.94Hz |
| Video Output | CVBS : 1.0Vp-p / 75ohm |
| Min. Illumination | 0.1 Lux at F1.2 (Color) / 0.01 Lux(B/W) |
| White Balance | ATW |
| Electronic Shutter Speed | Auto (1/60 sec ~ 1/100,000 sec) |
| AGC(Auto Gain Control) | ON |
| Day & Night | Auto |
| Operation Temperature / Humidity | 14°F ~ 122°F(−10°C ~ 50°C)/ 30% ~ 80% RH |
| Storage Temperature / Humidity | −4°F ~ 140°F(−20°C ~ 60°C) / 20% ~ 90% RH |
| Power | DC 12V |
