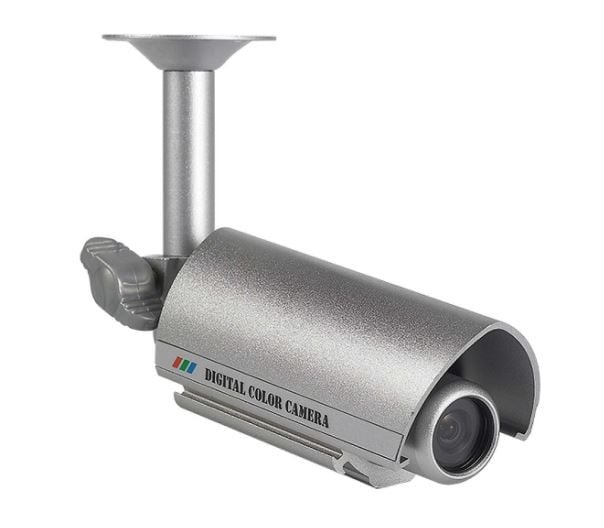

BU-381 380TVL Bullet Camera, Fixed Lens
In stock
SKU
cctv:bu381
$20.00
1/3" Sony Color CCD • 3.6mm Fixed Lens • Day & Night • Sun-Visor • Weather-Resistant
Overview
The BU 381 is one of top quality and affordable CCTV cameras. The BU 381 has a crystal clear normal resolution of 380 TV lines at an impressive 0.03 lux rating with help from its Day & Night function. The included sun-shield and camera-mounting bracket make this a complete package. The BU 381 is a stylish camera that blends into most office environments with ease.
FEATURES
- 1/3” Sony color CCD sensor
- Normal Resolution : 380 (H) TV Line
- Day & Night
- Min. Illumination – 0.3 Lux (Color) / 0.03 Lux (B/W)
- 12 volts DC power source, 300mA power consumption
- 3.6mm fixed lens installed
- Sun-Visor, Weather-resistant
- Auto Trace White Balance(ATW)
- Back Light Compensation(BLC)
- Electronic Shutter Control (ESC)
- Auto Gain Control (AGC)
- Mount bracket included
| Image Sensor | 1/3” Super HAD Color CCD |
| Picture elements | 537(H) x 505(V) 270K pixels |
| Effective Pixels | 510(H) x 492(V) 250K pixels |
| Sensing Area | 3.65(H) x 2.74(V) mm |
| Scanning System | 2:1 Interlace / 525 Lines / 60 Fields / 30 Frames |
| Day & Night | Yes |
| Horizontal Resolution | 380 (H) TV Line (Color) / 420 (H) TV Line (B/W) |
| S/N Ratio | More than 48dB |
| Video Output | 1.0Vp-p, 75 Ω |
| Lens | 3.6mm fixed board lens |
| Minimum Illumination | 0.3 Lux (Color) / 0.03 Lux (B&W) |
| White Balance | AWB |
| Shutter Speed | 1/60 ~ 1/100,000 Sec. (NTSC) |
| Dimensions | 0.8”(Ø) x 3.0”(L)mm |
| Gamma Characteristic | 0.45 |
| Weight | 0.7 lbs |
| Operational Temperature | -10°C ~ 50°C (14°F~122°F) RH 95% Max |
| Storage Temperature | -20°C ~ 60°C (14°F~122°F) RH 95% Max |
| Power | 12V DC / ±10% |
| Power Consumption | 150mA |
