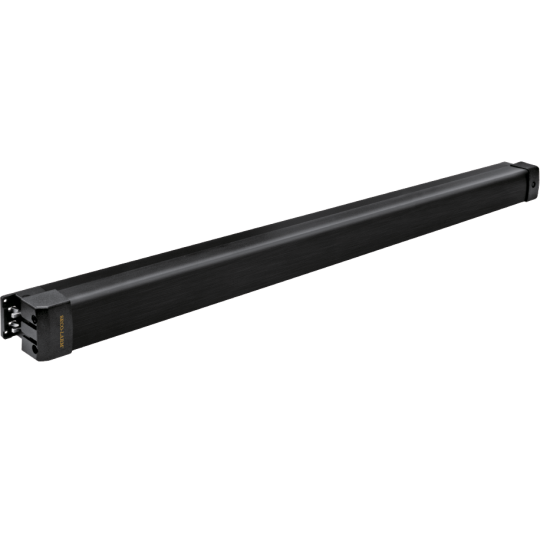

Seco-Larm SD-961B-36GSQ Solenoid-Actuated/Unlock Push Bar

ENFORCER Electromechanical Push Bars feature a double-locking spindle for stronger and more secure locking. All models include a cylinder lock for keyed entry and some models offer solenoid-actuation to allow unlocking and relocking by an access control device.

• Double-locking spindle (stronger and more secure)
• Aluminum alloy construction, reversible, non-handed
• Fail-secure operation (but can be opened from inside by pressing the bar)
• Lock status monitoring for indicating status
• Mortise lock cylinder and keys included to release the lock from the outside
• Dogging latch on push bar to hold open
• Includes all needed hardware for typical installations
• Solenoid-actuation allows unlocking and relocking by an access device
• Solenoid is rated for both continuous and intermittent operation

• Operating voltage	12~24 VDC/VAC
  Current draw	1.5A (0.5A after 3s)
  Endurance	Over 500,000 cycles
  Housing	Anodized aluminum
  For doors	36″ (91.5cm), min. 327/8″ (83.5cm), wood or metal
  Relay rating	Form C, 5A@125VAC
  Mode	Fail-secure
  Dimensions	2 7/16″x2 9/16″x35 1/16″ (61.5x65x890 mm)
