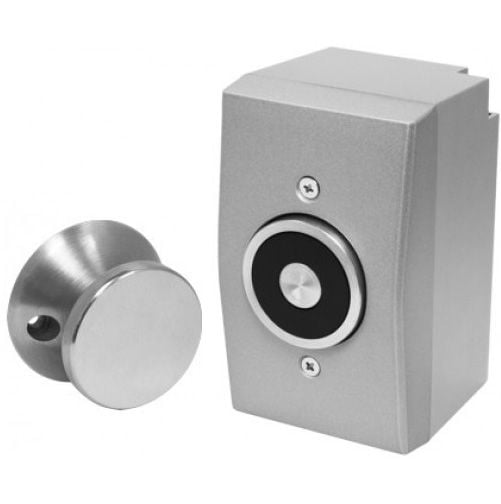

Seco-Larm DH-151SQ Magnetic Door Holder - Surface-Mount with Backbox
In stock
SKU
secolarm:dh151sq
$55.66
Holding Force 33-lb (15kg) Operating Voltage 12 VAC/VDC, 24 VAC/VDC, 120VAC Current Draw 52mA@12VAC, 60mA@12VDC, 27mA@24VAC, 31mA@24VDC, 24mA@120VAC Magnet Dimensions 2-3/4" x 4-9/16" x 3" (70 x 116.5 x 76 mm) Armature Dimensions 2-9/16" x 2-9/16" x 1-9/16" (65 x 65 x 40 mm) Certification UL, CE RoHS Compliance Yes Unit Weight (Approx.) 8.1-oz (230g) Case Shipping Weight 1-lb 6.4-oz (920g)
The UL Listed SECO-LARM Magnetic Door Holders are designed for virtually any remote door release applications, whether residential or commercial. Fail-safe operation, tri-volt coils, and adjustable armature plate allows for easy and flexible installation.
For use with door closers to control the release and closing of residential, commercial, and public area doors
Holding Force33-lb (15kg)InstallationSurface-mountOperating Voltage12/24 VAC/VDC, 120VACCurrent Draw52mA@12VAC, 60mA@12VDC, 27mA@24VAC, 31mA@24VDC, 24mA@120VACMagnet Dimensions2-3/4" x 4-9/16" x 3" (70 x 116.5 x 76 mm)Armature Dimensions2-9/16" x 2-9/16" x 1-9/16" (65 x 65 x 40 mm)Magnet Box Weight1-lb 6.4-oz (920g)Door Armature Weight8.1-oz (230g)
