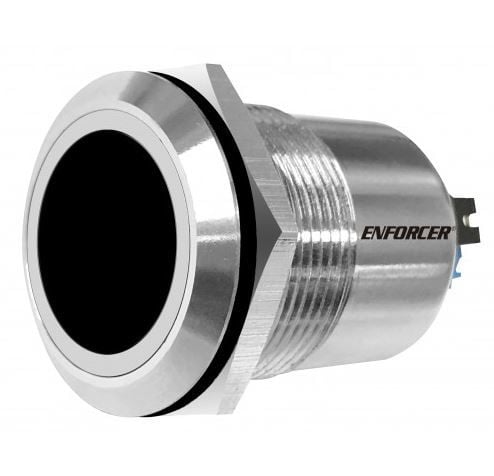

Seco-Larm CS-PD422-PQ Infrared Proximity Sensor
In stock
SKU
secolarm:cspd422pq
$40.64
Photoelectric proximity sensor. Diffused type, metal cylindrical threaded case 15cm max. sensing range, pigtail, 22mm body
- No-touch operation reduces the risk of spread of germs, viruses, etc., through cross-contamination
- Adjustable sensor range up to 6" (15cm) 1A relay, adjustable trigger duration 0.5~20 seconds or toggle
- Selectable LED colors (turns from red to green or green to red) to show if the sensor is activated
- Weather-resistant (IP65*) for outdoor use
- OEM / Private label available
- Weather-resistant when properly installed
| Operating Voltage | 12~24 VDC |
| Relay Type | Form C dry contact, NO/NC/COM, 1A@24VDC, 0.5A@12VAC |
| Response Time | 10mS |
| Output Time | 0.5~20s, toggle |
| Range | 1-9/16"~6" (4~15cm) |
| IP Rating | IP65* |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Dimensions | ø1-7/8" (ø22mm) |
