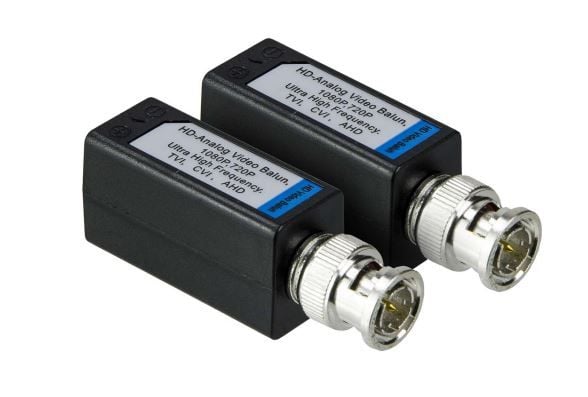

AP-MBS-31B HD-TVI / HD-CVI / A-HD / 960H / ANALOG HYBRID BALUN
In stock
SKU
cctv:apmbs31b
Compatible with HD-TVI / HD-CVI / A-HD / 960H / Analog Cameras • No Power Required • Push-in Terminal Block • Transmission Signal: 1080P, Max.250M 7200P, Max.300M • Built-in Surge & Transmission Protection • Super Interference Rejection
| PROPERTIES | |
| Transmission Signal | 1 Channel |
| Transmission Distance | 720P: 250m (max) 1080P: 200m (max) |
| Category Type | UTP CAT5/5E/6 |
| VIDEO TRANSMISSION PROPERTIES & PORT | |
| Coaxial Video Connector | BNC-M |
| Twisted-Pair Video Connector | Push-Terminal |
| Compatible Format | HDTVI, HDCVI, AHD, 960H, 720P |
| Resolution | 720p/1080p |
| Anti-Interference | >60db |
| PROTECTION | |
| ESD | 1a contact discharge electricity level 3 1b air discharge electricity level 3 Per: IEC61000 ~ 4-2 |
| Coaxial cable connector | 2KV(common-code) Per: IEC1000 ~ 4-5 |
| UTP Cable Connector | 2KV(different-code), 4KV(common-code), Per: IEC1000 ~ 4-5 |
| IMPEDANCE | |
| BNC Male | 75 ohms |
| UTP Cable | 100 ohms |
| PHYSICAL PROPERTIES | |
| Shell | ABS |
| Color | Black |
| N.W. | 25g |
| STABILITY | |
| MTBF | >10000H |
| ENVIRONMENTAL | |
| Operating Temperature | −10 ~ 55°C |
| Storage Temperature | −20 ~ 75°C |
| Humidity | 0 ~ 95% (non-condensing) |
