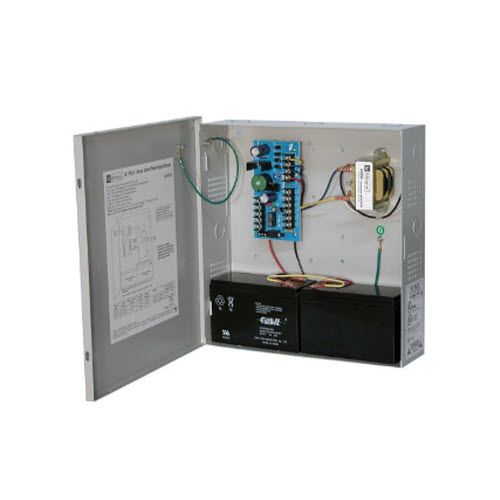

Altronix AL175ULX Switching Power Supply/Charger
In stock
SKU
altronix:al175ulx
$215.00
Key Features
- Voltage 115V AC, 60Hz, 0.6A.
- Trigger Access control trigger input.
- Two (2) Class 2 Rated power-limited outputs: Fail-Safe/Fail-Secure lock output (switched), Auxiliary power output (unswitched).
Product Overview
Introducing the Altronix AL175ULX Access Control Power Supply Charger, designed to meet your power needs with efficiency and reliability. This advanced switching power supply converts a standard 115VAC 60Hz input into two individually protected outputs, offering both 12VDC and 24VDC options. With a robust output of 1.75A, this power supply is UL listed, ensuring safety and quality. Its compact BC300 enclosure makes it easy to integrate into your existing systems. Don't compromise on power—choose the Altronix AL175ULX for dependable performance. Order now and enhance your access control solutions!
Main Features
- Voltage 115V AC, 60Hz, 0.6A.
- Trigger Access control trigger input.
- Two (2) Class 2 Rated power-limited outputs: Fail-Safe/Fail-Secure lock output (switched), Auxiliary power output (unswitched).
- Voltage 12VDC or 24VDC selectable.
- Current 1.75A continuous max.
- Other Short circuit and thermal overload protection.
- Type Sealed lead acid or gel type.
- Failover Upon AC loss, instantaneous.
- Supervised Latching or non-latching.
- AC Failure Form C contacts
