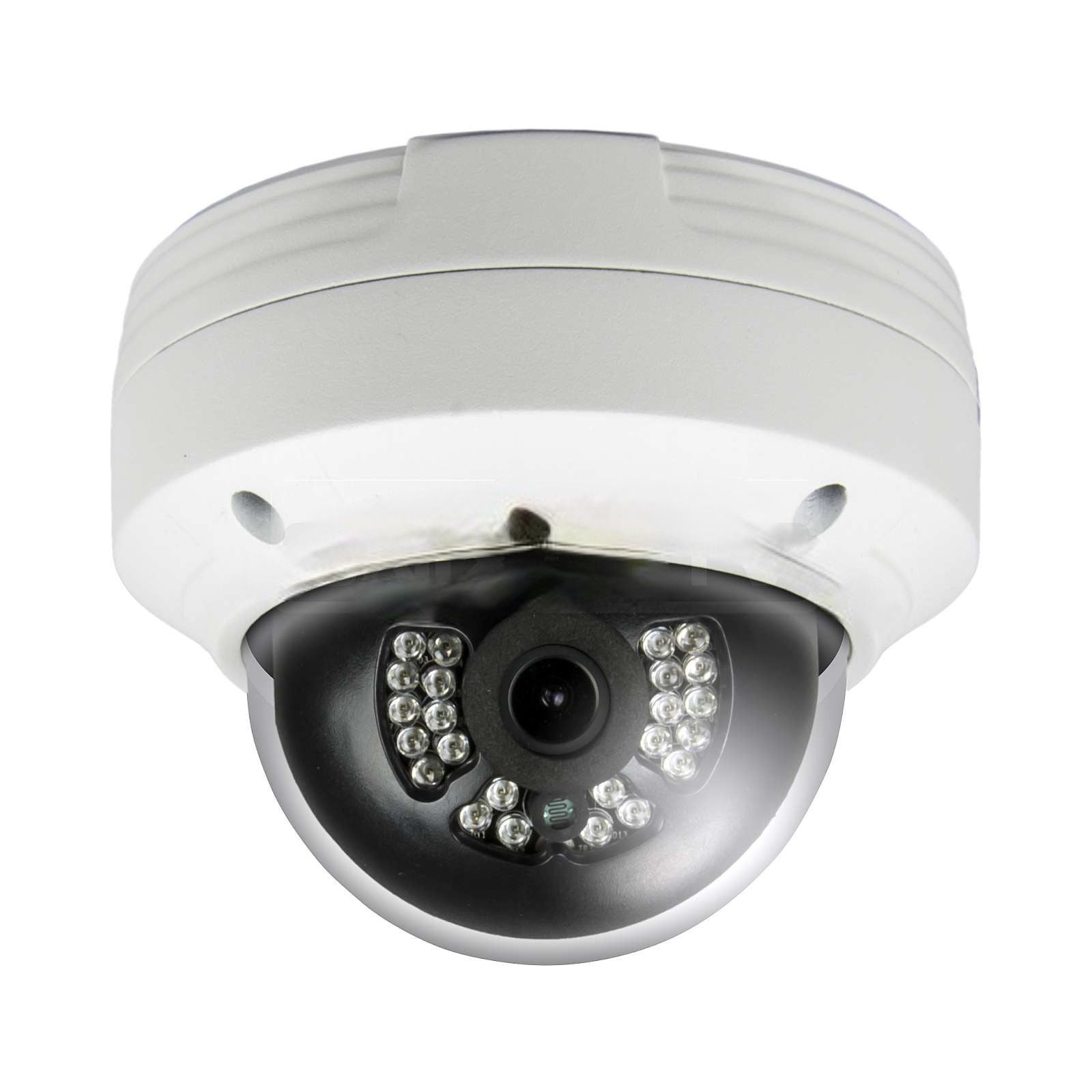

TIT-CA222F-W HD-TVI AHD IR Outdoor Dome, 24IR, IP66, 3.6mm
In stock
SKU
cctv:titca222fw
Overview
Adopt high performance HD-TVI sensor, providing high definition and clear image, up to 720P/1080P resolution
Real-time transmission with high speed and long distance
The filter will filter infrared light during the daytime and change to normal at night to ensure a high senesitivity and clear image.
The camera will display color image in daytime and become monochrome automatically at night
Adjust the color temperature according to the environment automatically
Reduct noise from brightness and color signal to save storage room under low illumination condition
SPECIFICATIONS
| Image Sensor | 1/3″ CMOS |
| Pixels | 1280×720, 1920×1080 |
| Signal system | PAL/NTSC |
| Minimum Illumination | 1.0 Lux(LED ON) |
| Lens | 3.6mm(2.8mm, 6mm optional) |
| IR Visible Distance | N/A(40-80ft optional) |
| IP Rank | IP66 |
| Video Out | BNC x 1 |
| Resolution | 720P(1280×720), 1080P(1920×1080) |
| Frame Rate | 30fps(60Hz), 25fps(50Hz) |
| ICR | Y |
| NDR | Y |
| S/N Ratio | >52dB(AGC Off) |
| Electronic Shutter | 1/50s ~ 1/67500s |
| AGC | Y |
| White Balance | Auto White Balance |
| Power | DC 12V ± 10% |
| Temperature | -40F ~ 158F |
| Humidity | 10% ~ 90% |
| Dimension | ∅4.6×3.6″ |
| Weight | 1.16lb |
