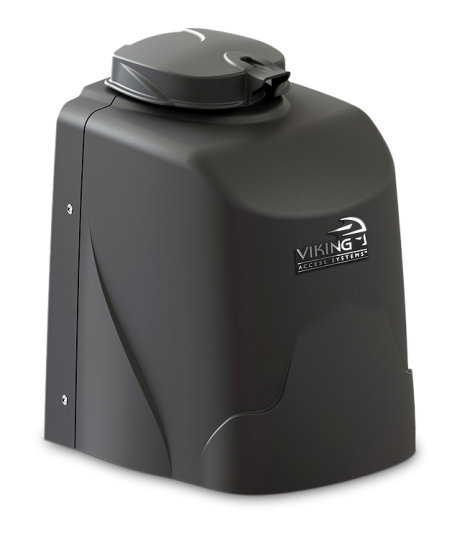

Viking T21 NEXT GEN VA-T21NX Swing Gate Operator
In stock
SKU
viking:vat21nx
$3,018.51
| SPECIFICATIONS | |
| Safety Devices | One monitored safety device required |
| Max Gate Size/Weight | 12'-2000 lbs or 20'/1200 lbs |
| Gate Traveling Speed | Approx 90° opening in 13-16 seconds |
| Cycles | Continuous |
| Operating Temperature | -20° F to 160° F |
| FEATURES | |
| Operational Voltage | 24VDC 1 Hp |
| Power Source Options | 120/240VAC Single Phase |
| Battery | 7 AmpHr 12VDC x 2 |
| Battery Backup | 400 Full Continuous Cycles (2000 Lbs) |
| Lightening Protection | 20,000 volts/10,000 Amps |
| Heater | Built-in heater |
| Finish | G90 Galvanized, Zinc plated, UV rated powder coating |
| Chassis | 1/4" Steel Chassis |
| Dimensions | H: 25-3/4" x L:17-3/4" x W:20-1/2" |
| Warranty | 5-Years |
| Insurance Price Type | Fixed |
|---|---|
| Motor Size | 1 Hp |
| Duty Type | Commercial |
| Max Gate Weight | 1200 lbs. |
| Max Gate Width | 20 ft. |
