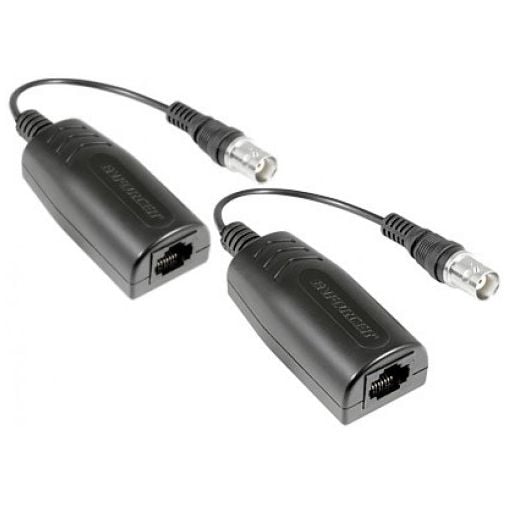

Seco-larm NE-SE01-020Q Passive Ethernet Extender over Coax
In stock
SKU
secolarm:nese01020q
$20.25
Basic Passive 1 channel Ethernet Extender. 10 Mbps/Full duplex. Transmission distance of up to 650ft (200M) Built in surge protection. Sold as set
- 1 Channel Ethernet over coax
- 10 Mbps Full duplex
- Transmission distance: 650ft (200m) (RG59)
- Passive, no power required
- Built-in surge protection
- Fast and easy to install
- Bidirectional – can operate as transmitter and receiver
- Sold as a set
Specifications
Range 10Mbps Up to 650' (200m), 100Mbps Up to 325' (100m)
Input Connector RJ45
Output Connector BNC
Standard IEEE802.3 10Base-T/100Base-T
Link Cable RG59/U or better
Ethernet Speed 10/100 Mbps
Operating Temperature -4º~131º F (-20º~55º C)
Dimensions 2-3/8” x 1-1/8” x 13/16” (60 x 29 x 20 mm)
