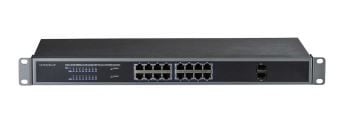

HA-PW3018G-16P 16-Port PoE Switch 2 SFP-Ports 250W
In stock
SKU
cctv:hapw3018g16p
$349.00
Unmanaged Gigabit Ethernet Switch with PoE (Power over Ethernet) Injector 16 Port 10/100/1000Base-TX with 16 Port PoE Switch / 2 SFP Ports / 250W
The HA PW3018G-16P, an unmanaged Gigabit-Ethernet switch, is designed for residential building in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections. The HA PW3018G-16P provides 16 10/100/1000Base-TX ports and 2 Gigabit SFP, It provides 16 PoE Injector.
KEY FEATURES
- Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af, IEEE802.3at
- Provides 16 10/100Base-TX ports,2 Gigabit Combo
- Provides 16 PoE injector and 250W power adapter
- High back-plane bandwidth 52Gbps
- IEEE802.3x Flow control
- Surge protection for power port and data ports
| Fixed port | 16 10/100/1000Base-TX ports 2 Combo Gigabit |
| LED Indicators | PWR, PoE, Link/Act LED. |
| Input voltage | 100V~160V AC, 50/60Hz |
| Power consumption | 255W (247W for PoE) |
| Operating temperature | 0°C ~ 40° |
| Storage temperature | −10° ~ 70° |
| Relative humidity | 20% ~ 89% (non-condensing). |
| Thermal methods | Fanless. |
| Switching capacity | 36G. |
| MAC address table | 8K. |
| Traffic control | IEEE 802.3x full-duplex flow control. |
| Size | 440×44×200mm(1U) |
| PoE port | 16 10/100/1000Base-TX ports. |
| PoE Standard | IEE802.3af, IEEE802.3at, per port 30W(MAX) / Total 250W |
| Pin assignment | V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6). |
