The HA-PW1005-04P, an unmanaged Fast-Ethernet switch, is designed for residential building in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections.

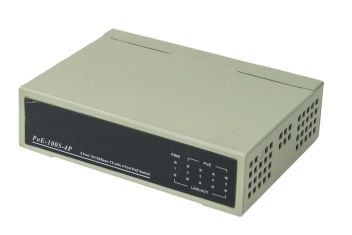

The HA-PW1005-04P is in the desk top style housing. It provides 5 10/100Base-TX ports. It provides 4 PoE Injector.

FEATURES

• Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af
• Provides Five 10/100 Base-TX ports
• Provides 4 PoE injector and build in AC power
• High back-plane bandwidth 10Gbps
• IEEE802.3x Flow control
• Surge protection for power port and data ports
• EMI standards complies with FCC, CE class B

SPECIFICATIONS

HA PW1005-04P
Summarize
Fixed port	5 10/100Base-TX ports.
LED Indicators	PWR, PoE, Link/Act VLAN LED.
Input voltage	100V~240V AC, 50/60Hz
Power consumption	72W (62W for PoE)
Operating temperature	0°C~40°C
Storage temperature	-10°C~70°C
Relative humidity	20%~85% (non-condensing)
Thermal methods	Built-in Noiseless FAN.
Switching capacity	16G.
MAC address table	4K.
Traffic control	IEEE 802.3x full-duplex flow control.
PoE
PoE port	4 10/100/1000Base-TX ports.
PoE Standard	IEE802.3af, per port 12.5W.
Pin assignment	V+ (RJ45 Pin 4, 5), V- (RJ45 Pin 7, 8).
