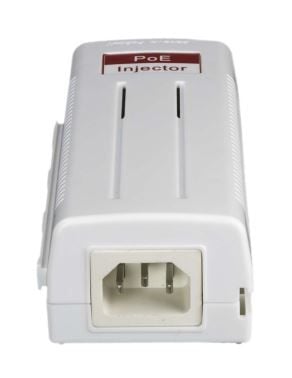

HA-PS101-01P 30W PoE Injector, Single PoE Device
In stock
SKU
cctv:haps10101p
$25.90
HA-PS101-01P PoE Splitter for non PoE Device*1CH*10/100/1000 Base-T*IEE802.af*100m Range*Output DC 24V/12V/5V
HA-PS101-01P PoE injectors enable data terminals that were not originally designed to accept power from the Ethernet, to be powered by Power over Ethernet mid-spans. The HA-PS101-01P PoE injector can power devices such as WiMAX CPEs, small WiMAX base-stations, 802.11n Access-Points, Thin-Clients, PTZ (Pan/Tilt/Zoom) IP Cameras, Video-Phones and more.
FEATURES
- Full IEEE 802.3af, IEEE 802.3at, Compliant
- Up to 30W
- Supports 10/100/1000 Base-T applications
- LED indicators power input indication
- Distance up to 100 meters
- Internal DC/DC converter - no need for external power brick
- Easy plug-and-play installation
- Surge protection
- EMI standards complies with FCC, CE class B
SPECIFICATIONS
| HA PS101-01P | |
| No. of Ports | 1 |
| Data Rates | 10/100/1000 Mbps |
| Electrical | Pin Assignment and Polarity: 4/5 (+), 7/8 (-) Input Power Voltage: 44-57Vdc Input Power: 15.4W Output Power: 13W Output Power: 24V/0.5A, 12V/1A, 5V/2.5A |
| Dimensions | 150mm×65mm×38mm |
| Indicators | System Indicator: AC Power User Indicator: Channel Power |
| Environmental Conditions | Operating Ambient Temperature: -10 to 45°C Operating Humidity: Maximum 90%, Non-condensing Storage Temperature: -20 to 70°C Storage Humidity: Maximum 95%, Non-condensing |
| Reliability | MTBF: 100,000 hrs. @25°C |
| Regulatory Compliance | IEEE 802.3af (PoE), RoHS Compliant, CE, FCC |
| Electromagnetic Emission & Immunity | FCC Part15, Class B EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI |
| Surge Protection | RJ45 port: 4kV |
| Safety Approvals | UL/cUL Per EN 6095-1 GS Mark Per EN 60950-1 |
