DKS Doorking 1520-087 Card Reader Mifare, Standalone

DKS Doorking 1520-087 Card Reader Mifare, Standalone. The 1520 provides users with a full feature, single door, stand-alone Access Control System. The 1520 is available with a built-in Proximity Card Reader, or can be ordered as a single door Controller, allowing the user to add their own 26-bit Access Control Device. The 1524 can be programmed with a handheld programmer or with programming cards, and is available only with a DK Prox Card Reader.

• Stores up to 1000 card codes
• Transaction buffer stores last 3600 events
• Timed anti-pass back (1-59 minutes)
• Four time zones
• Clock and transaction buffer maintain data for up to 3 days in the event of a power outage
• Print Menu.
• Real time print mode.
• Form “C” dry contact relay
• 16 VAC, 20 VA power transformer supplied.

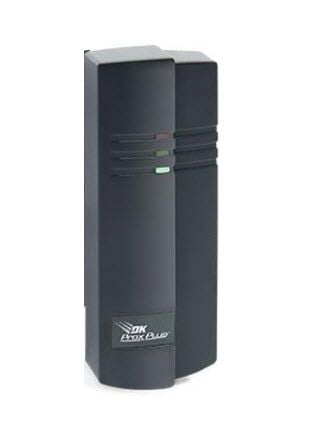

• Built-in proximity card reader (available with DK ProxPlus, DK Prox, AWID or HID reader)
• Available as a controller only (add your own 26-bit wiegand device)
• Built-in programming keypad
• Indoor or outdoor use
• Shipping weight approximately 8 Lbs. (3.6 kg)

  Miscellaneous

  • Output is a form C dry contact relay rated at
  • 30 Volt, 1 Amp
  • Operating temperature -31° to 150° F (-35° to 65° C)
  • Card readers are ETL Listed
